Capacity:
5-800t/h
Customization:
It has the advantages of large crushing ratio, uniform product size, simple structure, and convenient maintenance. It is divided into coarse crushing and fine crushing. The compressive strength of the crushed material is 320MPA.

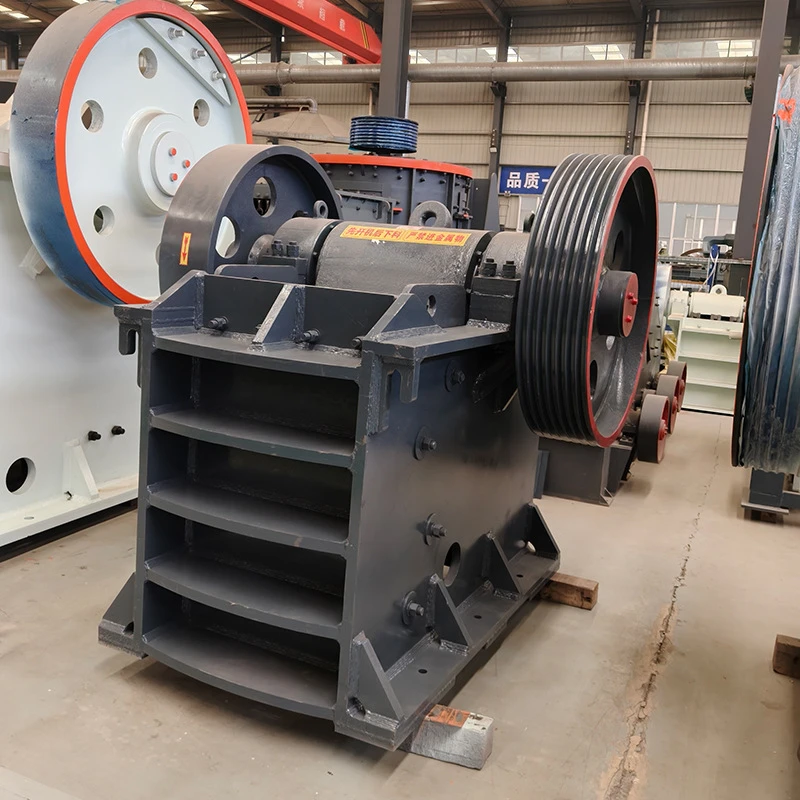

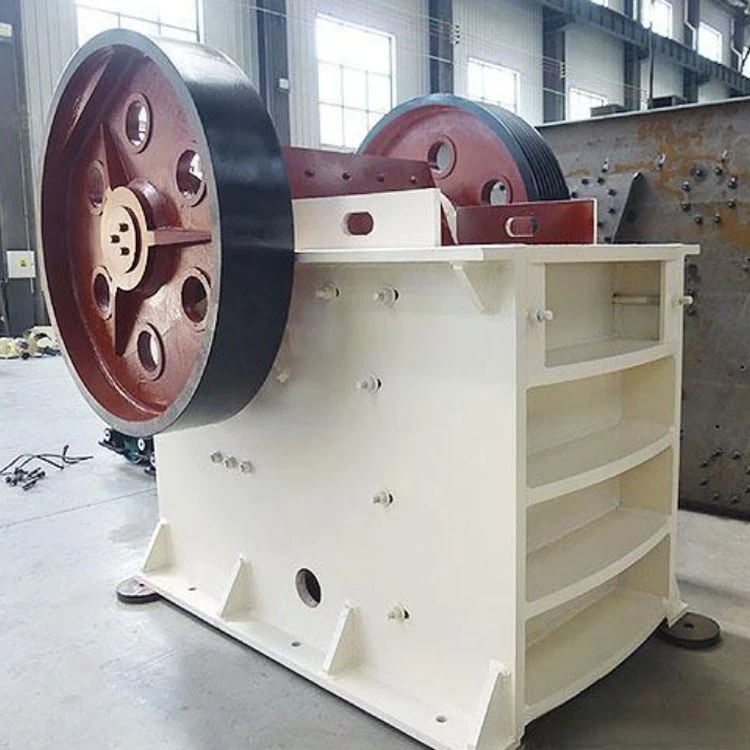

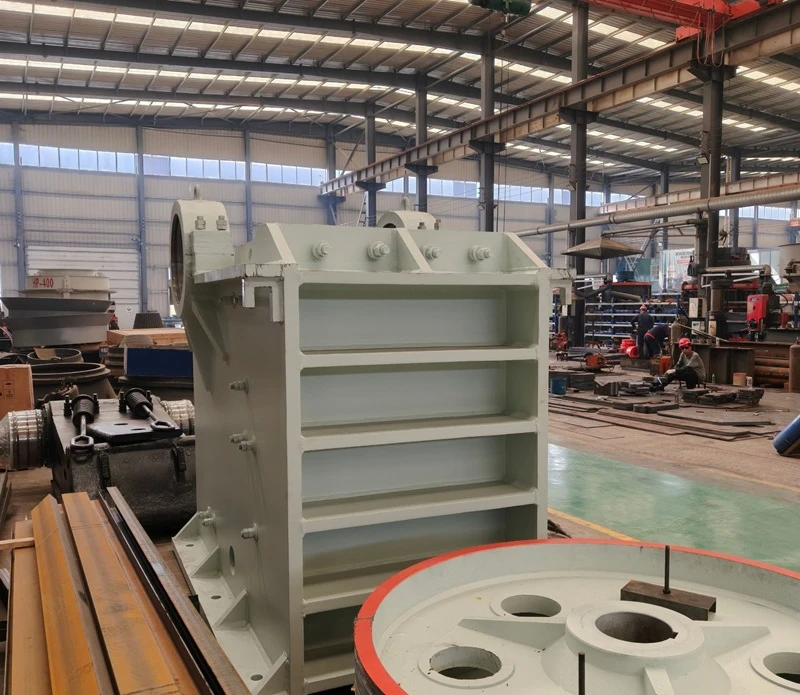

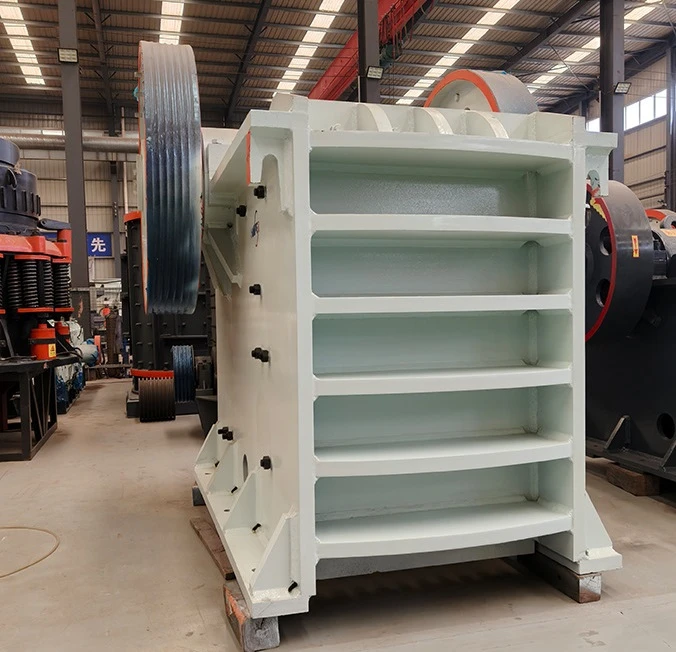

It imitates the jaw movement of animals, and uses the periodic relative movement between the movable jaw and the fixed jaw to squeeze, rub and bend the materials entering the crushing chamber to crush them. When the movable jaw leaves the fixed jaw, the crushed materials are discharged from the discharge port under the action of gravity.
Usually used as primary crushing equipment, it is widely used in mining, metallurgy, construction, highways, railways, water conservancy and other industries to crush ores and rocks of various hardness (such as granite, limestone, basalt, quartz, etc.).
Simple structure, reliable operation, easy maintenance, low operating cost, large crushing ratio.
Relatively low production capacity and poor handling ability for wet and sticky materials.
| Model | Processing capacity(t/h) | Main power(kw) | Weight(t) | Dimensions(mm) |
| PS-250×400 | 5-20 | 15 | 2.8 | 1450*1315*1296 |
| PS-300×500 | 10-15 | 22 | 4 | 1500*1290*1470 |
| PS-400×600 | 16-64 | 30 | 7 | 1730*1730*1630 |
| PS-550×750 | 40-110 | 55 | 12 | 1980*2080*1870 |
| PS-600×900 | 50-160 | 55 | 17 | 2190*2206*2300 |
| PS-750×1060 | 110-320 | 110 | 29 | 2660*2430*2800 |
| PS-900×2000 | 220-380 | 110 | 52 | 3380*2870*3330 |
| PS-1000×2000 | 315-500 | 110 | 55 | 3480*2876*3330 |
| PS-1200×1500 | 400-800 | 160-220 | 101 | 4200*3300*3500 |
